Weble UI - Supervision

Visual interface for building management

Control your building anywhere in the world with a simple tool compatible with all communication protocols

Module details

Features:

  • BIM display (beta)
  • 3D Picture display
  • Plan display
  • List display
  • Schedules
  • Scene

Our industrials computers

Weble IoT gateways

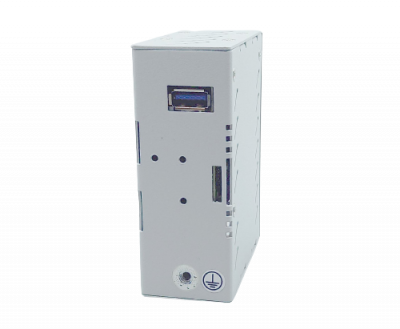

Weble G110

Industrial Computer with rail-din housing. IoT ready. With 2 ethernets and RS485 ports

  • 1 × SD card slot (not use)
  • 1 × EMMC
  • 2 × RS485 (for Modbus/Bacnet communication)
  • 1 × Ethernet 10/100 Mbps
  • 1 × Ethernet 1000 Mbps
  • 1 × USB
  • 1 × service button
  • 1 GB RAM
  • 4 × 0.6 GHz CPU
  • DIN rail mounting
  • Steel case
  • Power supply 12-24 V DC required
  • RTC (Real Time Clock) with battery
Device details

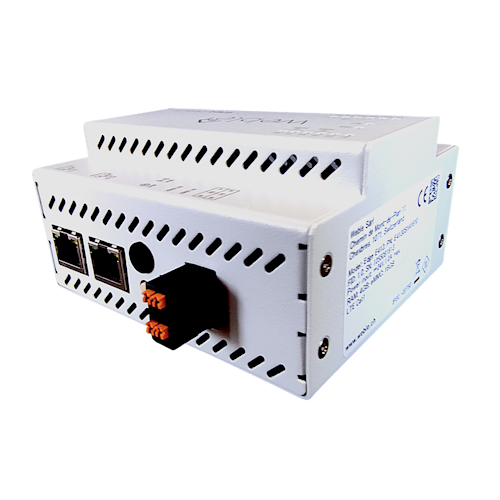

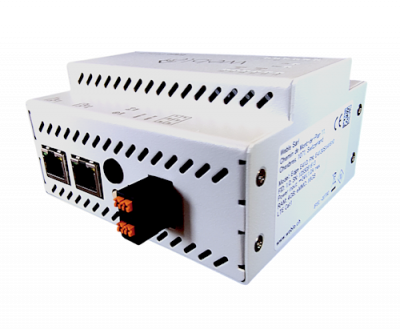

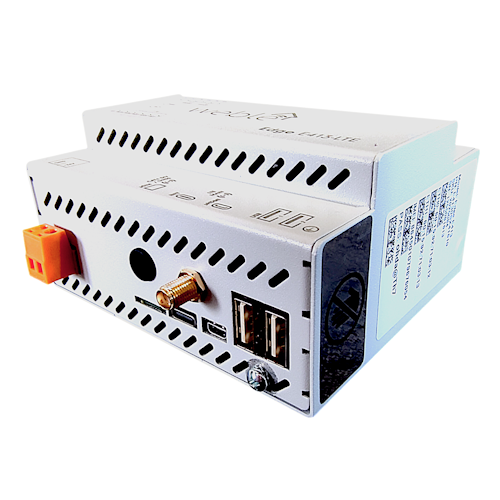

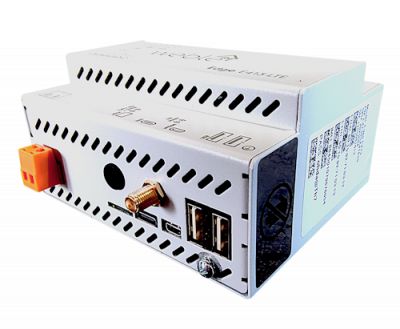

Weble S485

Industrial Computer with rail-din housing. IoT ready.

  • 1 × SD card slot
  • 2 × RS485 (for Modbus/Bacnet communication)
  • 1 × Ethernet 10/100 Mbps
  • 1 × USB otg
  • 3 × USB
  • 1 × reset button
  • 1 GB RAM
  • 4 × 1.2 GHz CPU
  • DIN rail mounting
  • Steel case
  • Power supply 12-24 V DC required
  • RTC (Real Time Clock) with battery
Device details

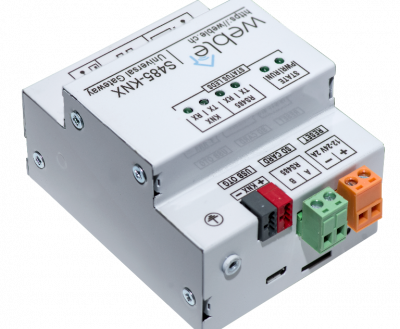

Weble S485 KNX

Industrial Computer with rail-din housing. IoT ready.

  • 1 × SD card slot
  • 1 × RS485 (for Modbus/Bacnet communication)
  • 1 × KNX (for KNX twisted pair communication)
  • 1 × Ethernet 10/100 Mbps
  • 1 × USB otg
  • 3 × USB
  • 1 × reset button
  • 1 GB RAM
  • 4 × 1.2 GHz CPU
  • DIN rail mounting
  • Steel case
  • Power supply 12-24 V DC required
  • RTC (Real Time Clock) with battery
Device details

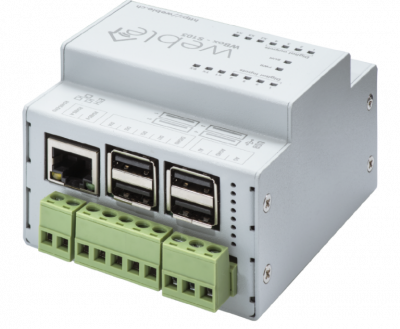

Weble S103

Industrial Computer with rail-din housing. IoT ready.

  • 1 × SD card slot
  • 4 × Digital inputs 5-24 V DC
  • 4 × Transistor outputs max. 750 mA at 50 V DC
  • 1 × Analog output 0-10 V
  • 1 × Analog input 0-10 V/4-20 mA
  • 1 × Wire bus (with galvanic isolation)
  • 1 × RS485 (for Modbus/Bacnet communication)
  • 1 GB RAM
  • 4 × 1.2 GHz CPU
  • 4 × USB
  • 1 × Ethernet 10/100 Mbps
  • DIN rail mounting
  • Anodized aluminum case
  • Power supply 24 V DC required
  • RTC (Real Time Clock) with battery
Device details

Universal Building Automation & IoT Gateway.

Available software drivers for inter-protocol routing and custom logic programmation.

Software drivers for new or not yet supported protocols are implemented on customer request. For interoperability, all our functionalities, drivers, are available from our Weble open native JavaScript API, or with simple REST HTTP(S) POST/GET requests.

Inter-Protocol Routing Made Easy

Our Building Automation Solution.

Our software allows you to route data between different communication protocols, such as Modbus, BACnet, MBus, KNX, and many other protocols commonly used in building automation. With our software, you can easily connect different equipment and systems that use different protocols, without worrying about compatibility between the protocols.

Our software uses advanced algorithms to convert data between different protocol formats, enabling fast and reliable routing. You can also customize routing parameters to meet the specific needs of your project. For example, you can configure the software to map data addresses between different protocols, adjust transmission rates, or enable security features to protect your data.

Our software is designed to be user-friendly and can be integrated into your existing infrastructure in just a few simple steps. We also offer technical assistance and training to help you get started quickly.

In summary, our inter-protocol routing software is the ideal solution for facilitating data transfer between different communication protocols in the field of building automation. Contact us today to learn more about our software and how it can improve your project.

this example shows how to route a modbus value over bacnet.

Additional software modules available

  • Remote VPN Access
    This VPN client, once activated on your device, will permit you to access it remotely for configuration and maintenance. It can also be used to access the device LAN and access other IP equipments. This solution can be used to deploy a smartphone application and access your installation from your cellular network (3g/4g/5g) or from any web-browser. The VPN connection is fully encrypted and secure.
  • Redundancy
    The redundancy module permits to configure 2 devices in redundancy using the master / slave paradigm. The slave device is synchronized on the master device. If the master device fails, then the slave will automatically takeover to maintain the operation of the installation. The data synchronization between the two devices is usually done over the LAN network through a TCP/IP connection.
  • Logic
    If you are a project engineer or a home automation integrator, you will find that the logic module meets your requirements particularly well. Whether it’s triggering commands, scheduling tasks, launching SMS or Mail alerts, generating automatisms, or calculating values, everyone will find the optimal solution for their needs.

They trust us

Building Automation

Achieving your automation projects is one of our priorities. Our expertise in this area covers many existing materials, thanks to the relationships we have with our professional network of representatives of any brand.

However we encourage the use of the KNX devices: their high compliance to the KNX standard is essential for easily interfacing different kinds of sensors and actuators.

IT

The development of custom solutions permits to meet your specific needs. We seek compatibility between all of your systems, technologies, and platforms. We can also advise and optimize the structure of your IT park and network.

Development

Part of our business is to explore new markets in order to train ourselves continuously to guarantee you scalable and modern solutions meeting your needs.

Service SMS

To improve internal company communication, we offer a system that allows you to send SMS by writing emails from your email tool (Outlook, Hotmail etc …) or from our web interface, accessible with any standard Internet browser.

A Weble server takes care to send your message for the recipient in SMS format. Once received on a phone, it is possible to answer to the SMS. The answer is then automatically forwarded to your email account.
